Reimagining the boundaries of wireless communication

4G LTE Solutions

Advancing high-speed broadband with fixed wireless

Service providers can use the latest technology to deliver high-speed broadband services to their customers over the last mile using multiple license spectrum, or the shared-spectrum Citizens Broadband Radio Service (CBRS) over 4G and 5G LTE technology. CBRS is a band of the radio-frequency spectrum from 3.5GHz to 3.7GHz that the FCC has designated for sharing among three tiers of uses: incumbent users, priority licensees, and generally authorized, which is unlicensed. The incumbent users include satellite ground stations and the Navy.

Compared with previous mobile network technologies, 4G LTE offers much higher bandwidth (speed of data transfer), lower latency (after response times from the network), and improved spectrum efficiency (increasing overall network capacity). This allows:

  • More applications to be used on mobile devices, out of the home or office
  • Faster or real-time sharing of large files and streaming media
  • Near-immediate delivery of time-sensitive data, such as for real-time interaction or transactions

LTE will deliver improvements in the performance of many existing applications, and make feasible new applications that depend on reliable high-speed or responsive data transfer. Examples include innovative telemedicine applications, remote monitoring, fully mobile virtual desktops, and high-definition mobile videoconferencing. The improved user experience and practicality of LTE will also hasten the uptake of those existing applications that already work on mobile devices - but just not very well. Finally, LTE's high bandwidth can support the rapid set-up of temporary workplaces, as an alternative or backup to fixed broadband connections.



Zyxel LTE Solutions

The Zyxel LTE Series indoor and outdoor CPE enables service providers to deploy wireless broadband internet connectivity in rural and remote areas where the deployment of DSL, cable, and fiber is cost-prohibitive. The Zyxel LTE Series products support both bridge and router functions to maximize flexibility in deployment and incorporate high gain antennas for better signal performance in different deployment scenarios.

Download speeds of up to 580 Mbps*, UE cat-16, B48
Built-in 2x2 or 4x4 MIMO, high-gain antenna of up to 8 or 10 dBi per element
Standard 802.3af/at Power over Ethernet (PoE)
IP68 hardened enclosure with industrial-grade components

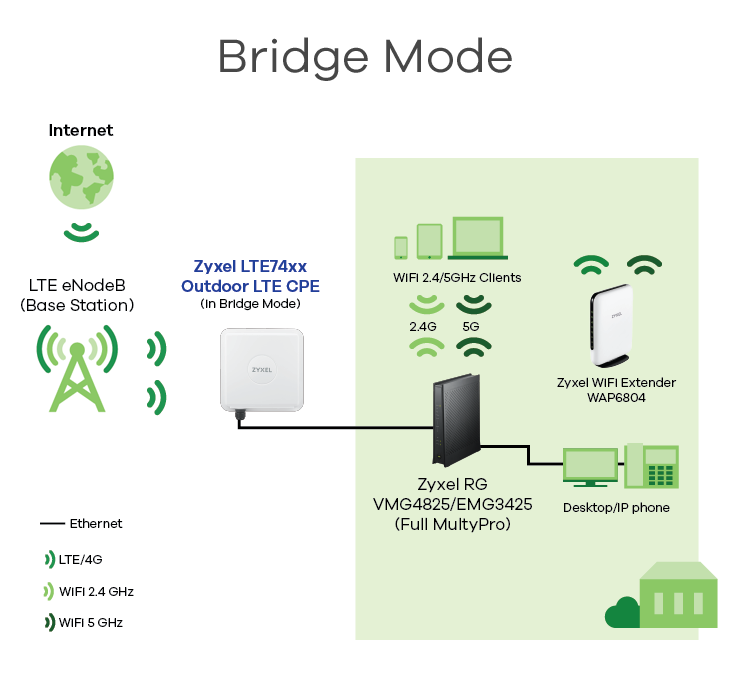

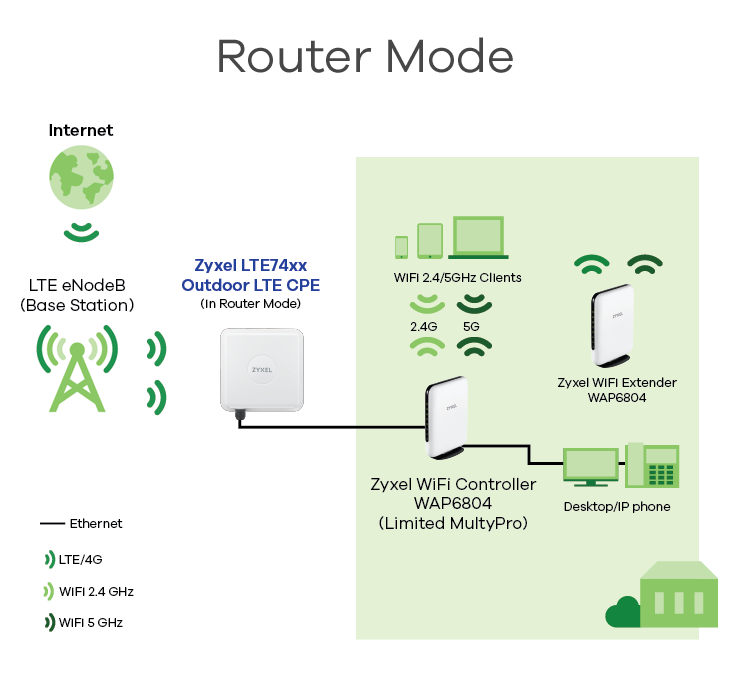

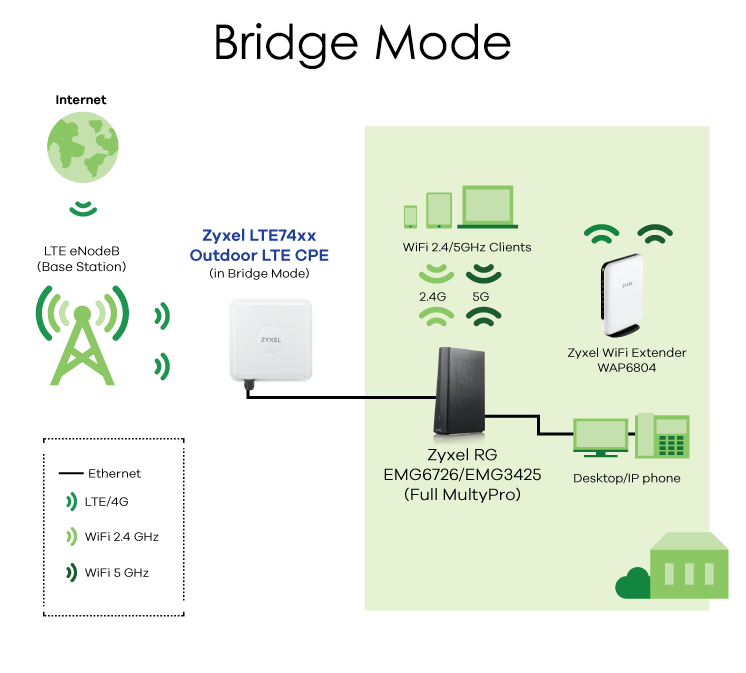

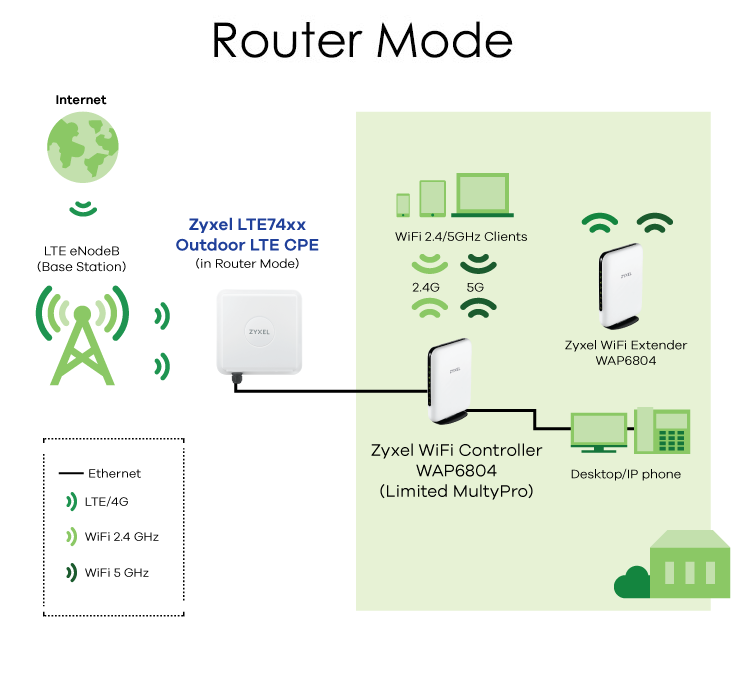

Embedded bridge/router mode
Remote throughput testing
Mobile apps (iOS and Android)

Zyxel outdoor LTE CPE

Zyxel offers a range of outdoor LTE CPE that operate on CBRS or licensed frequency bands. Zyxel outdoor CPE has built-in high-gain antennas for better performance, temperature hardened enclosure, and intuitive configuration and management tools, including a mobile app.


Our Solutions are Made to Provide Reliable Performance in Harsh Environments

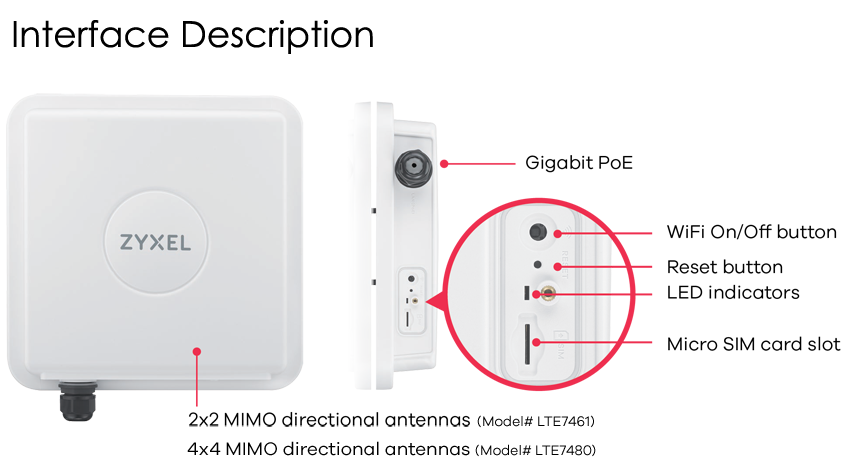

Designed to be easily deployed and integrated into existing network environments, LTE7461, LTE7480 and LTE7485 outdoor CPEs are housed in robust IP68 enclosures to protect them from damage from harmful dust and water when deployed in harsh outdoor environments.


Ease of Deployment and Management

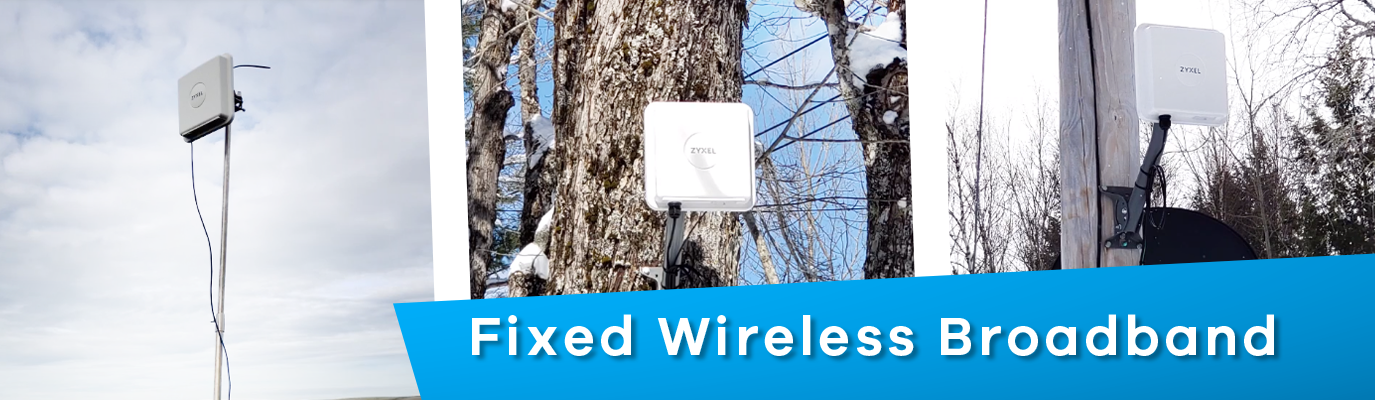

Our LTE CPE is easily installed on a wall or pole and features integrated 802.3af/at PoE PD (power device) support eliminating the need to locate the device near a power source. Zyxel LTE MobileApp for Android and iOS enables service providers to set up, manage, and monitor customer CPE from a mobile device. Our LTE Series supports TR-069, remote GUI, and remote FTP to simplify remote configuration, software upgrades, and network management.


Product comparison


INDOOR
OUTDOOR
LTE-group-photo
LTE5388

CAT16 CBRS Indoor CPE


LTE7461

Multi-licensed Band Outdoor CPE


LTE7480

CAT16 CBRS Outdoor CPE


LTE7485

CAT16 High-Power CBRS Outdoor CPE

LTE Band

B48 (B42/43)*

2/4/5/7/12/13/25/26/29/66
Certified by AT&T and Verizon

B48 (B42/43)*

B48 (B42/43)*

Category

CAT-16

CAT-6

CAT-16

CAT-16

Max DL/UL (PHY)**

580/30 Mbps
(TDD Config. 2)

300/50 Mbps

580/30 Mbps
(TDD Config. 2)

580/30 Mbps
(TDD Config. 2)

Output power (max. TX EIRP)

23 dBm (CBRS EUD)

30 dBm

23 dBm (CBRS EUD)

36 dBm (CBSD Cat. B)

MIMO/Antenna

4x4

2x2

4x4

4x4

Operating Mode

Bridge & Router

Bridge & Router

Bridge & Router

Bridge & Router

GUI

Responsive

Responsive

Responsive

Responsive

Remote Management

TR069/TR-143
& Zyxel Band Pilot

TR069/TR-143
& Zyxel Band Pilot

TR069/TR-143
& Zyxel Band Pilot

TR069/TR-143
& Zyxel Band Pilot

Mobile App Yes

Yes

Yes

Yes

Yes

Enclosure

Indoor

IP68

IP68

IP68

Availability

Available

Available

Available

Available

Spectrum Access System (SAS) Approved



-

-

-

Certified by Commscope, Federated Wireless, and Google.

* It is for an early temporary field trial.

** The listed connection rate is the theoretical maximum. The actual data transfer rate will vary depending on the network environment.



Resources download

Datasheet
Competitive advantages documents


Why choose Zyxel LTE

Zyxel’s family of LTE products also includes the Citizens Broadband Radio Service (CBRS) Outdoor Router and LTE7461 Multiple-Licensed Band Outdoor Router which combine LTE network technology and high-gain antennas to provide lightning-fast Internet connectivity to hard-to-reach customers. Zyxel’s 5G products also include the 5G New Radio Sub 6GHz Outdoor router and Indoor router, which deliver greater performance, spectrum efficiency, and latency compared to current LTE standards.

Local Service & Support

Zyxel’s North American headquarters are in Southern California where customers are supported by a team of experienced engineers and executives that include sales, logistics, and technical support teams.

  • In-House Manufacturing Dedicated Engineering Support to Integration & Testing Labs
  • In-House R&D
  • US-Based Management & Sales Team
  • US-Based Tech Support
  • US-Based Product Management
  • US-Based Logistics Team

Zyxel’s North American headquarters are in Southern California, where customers are supported by a team of experienced engineers and executives that include sales, logistics, and technical support teams. Please contact us for more information: broadband@zyxel.com
